When Satellite Roof Reports Get the Pitch Wrong (And Why It Matters)

I use satellite roof measurement reports all the time. They save time, reduce climbing, and they’re usually “close enough” for estimating. But every once in a while a satellite report gets something wrong that can’t be “close enough.”

This week I looked at a property near Casa Linda in Dallas (ZIP 75228, just off Garland/Buckner). The homeowner wanted to explore a Class 4 impact-resistant shingle (GAF Armor Shield II, Owens Corning Duration Flex/Storm, etc.) or possibly a standing seam metal roof.

As part of the process, I ordered a Roofr report . Roofr is a popular satellite-measurement option for contractors because it’s typically less expensive than the “carrier-grade” reports many insurance companies use, like EagleView.

These reports are built to deliver the basics contractors need:

• Total roof area (squares / square footage)
• Perimeter length
• Ridges/hips/valleys/rakes
• Sometimes: facet breakdowns, penetrations, and roof pitch

Pitch matters because it affects true surface area and it affects what materials are even allowed.

The Problem: The Roof Looked Too Flat for Shingles

When I arrived, the roof looked low-slope—borderline for shingles. Roofr showed the predominant pitch at 3/12, which is generally fine for shingles.

But with low slopes, you don’t guess. You verify.

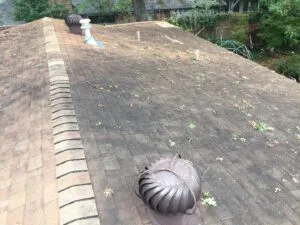

So I pulled out a manual pitch meter and took field readings. The roof had multiple planes with different slopes, but the predominant pitch was about 1.5/12. The highest plane I saw was around 2.5/12.

That changes everything.

• 1.5/12 is too low for shingles.
• Even 2/12 is “allowed” only with special underlayment requirements and strict compliance with manufacturer instructions and code. (ICC Digital Codes)

Once I saw 1.5/12 as the dominant slope, the conclusion was straightforward: no shingles on that roof if you want to do it correctly.

Why This Happens: Older Homes, Wood Framing, and Gravity

This property had some age on it. A house built around 1960 is now about 65 years old.

If a wood-framed structure was originally built at (say) 2/12, it’s not unusual over decades for the roof framing to relax a bit. Gravity wins slowly. That 2/12 can drift down to something like 1.5/12.

This isn’t rare. It’s just one more reason why a “paper pitch” from a satellite report shouldn’t be treated as gospel—especially on older construction and especially on borderline slopes.

Why a Satellite Report Might Show 3/12 When It Isn’t

Satellite measurement is impressive. But it has limits.

A satellite report is essentially converting a 2D model into a 3D estimate. Pitch is part of that conversion. The steeper the pitch, the larger the true surface area. So even small changes in pitch can nudge area estimates upward.

Here’s the practical reality: satellite reports often round. And in the contractor world, they tend to round in the direction that creates fewer complaints.

If the report comes in low, contractors get irritated. If it comes in a little high, most people shrug and keep going. Even EagleView’s own report guides talk about rounding in their outputs. (Eagleview US)

Most of the time, that rounding doesn’t matter much. If a roof is really 8.5/12 and a report calls it 9/12, nobody loses sleep.

But it matters a lot when the roof is right at the line where a material switches from “okay” to “wrong.”

The Line in the Sand: What Code and Manufacturers Say About Shingles

This is where homeowners get burned—because a contractor can wave a satellite report around like it’s definitive.

Both building code and manufacturers set minimum slopes for asphalt shingles:

• The IRC states asphalt shingles should be used only on slopes 2:12 or greater. (ICC Digital Codes)
• When you’re in the 2/12 to under 4/12 range, the IRC requires specific low-slope underlayment application (the “double coverage” approach). (ICC Digital Codes)
• Manufacturers also publish low-slope rules (Owens Corning has clear low-slope underlayment requirements in their Duration installation instructions; GAF has guidance for 2/12–4/12 applications). (Owens Corning)

So if your roof is 1.5/12, you are outside the shingle rules. Period.

Could shingles sometimes survive on a very low slope with aggressive underlayment? Maybe. But that’s not the standard, and it’s not what shingles are designed to do. Shingles are a shedding system, not a waterproof membrane.

Low slope creates slow drainage. That increases the chance water works sideways, backs up, or finds its way into laps and penetrations. GAF even calls out wind-driven rain risk and the need for extra protection in low-slope shingle scenarios. (GAF)

The Homeowner Risk: Bad Bids, Bad Assumptions, and Future Resale Headaches

Most homeowners should get multiple bids. Roofing is a big-ticket project. Comparing approaches is healthy.

But here’s the caution: some contractors are inexperienced, lazy, or simply chasing the lowest number to win the job.

Shingles are usually cheaper than standing seam. So it would not shock me to see a contractor say:

“It’s a 3/12 roof. Here’s the satellite report. Shingles are fine.”

If the roof is actually 1.5/12, that’s a problem.

You’re asking shingles to do a job they were not built to do. You also run the risk of:

• Leaks over time (especially wind-driven rain)
• Voided manufacturer coverage if the installation violates published requirements
• A future buyer’s inspector calling it out during resale because the material doesn’t match the slope requirements

This is avoidable. It takes one extra step: verify pitch in the field—especially on older homes and especially when the slope looks borderline.

Practical Advice: How to Use Satellite Reports the Right Way

Satellite reports are useful. I use them. But you need the right mindset.

1. Use the report for takeoffs.
   Area, ridge/hip/valley lengths, and perimeter are what these reports are best at.
2. Treat pitch as “a starting point,” not a final answer.
   If the roof is anywhere near the minimum slope for a material, verify it on the roof.
3. Design to the lowest-slope plane that matters.
   One low-slope section can dictate system choice and detailing.
4. Ask your roofer to show you the pitch readings.
   A photo of a digital level on the roof plane is easy proof.

If you want more detail on the shingle side of this, I’ve covered minimum shingle slopes here: Minimum Pitch/Slope of an Asphalt Shingle Roof.

Related pages Hail Damage in Dallas

• Are Impact Resistant Shingles Hail Proof? (UL 2218 explained)
• Roofing Services & Products (including low slope and standing seam)

Manufacturer’s Instructions – Building Code

• IRC asphalt shingle slope requirement: ICC Digital Codes (R905.2.2). (ICC Digital Codes)
• IRC standing seam minimum slope: ICC Digital Codes (R905.10.2). (ICC Digital Codes)
• Manufacturer low-slope shingle guidance: Owens Corning Duration install instructions; GAF low-slope bulletin. (Owens Corning)
